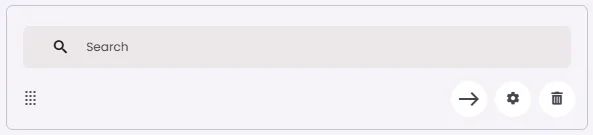

Search is an element that allows users to quickly find content by entering keywords or phrases.
🧱 Gridding Rules

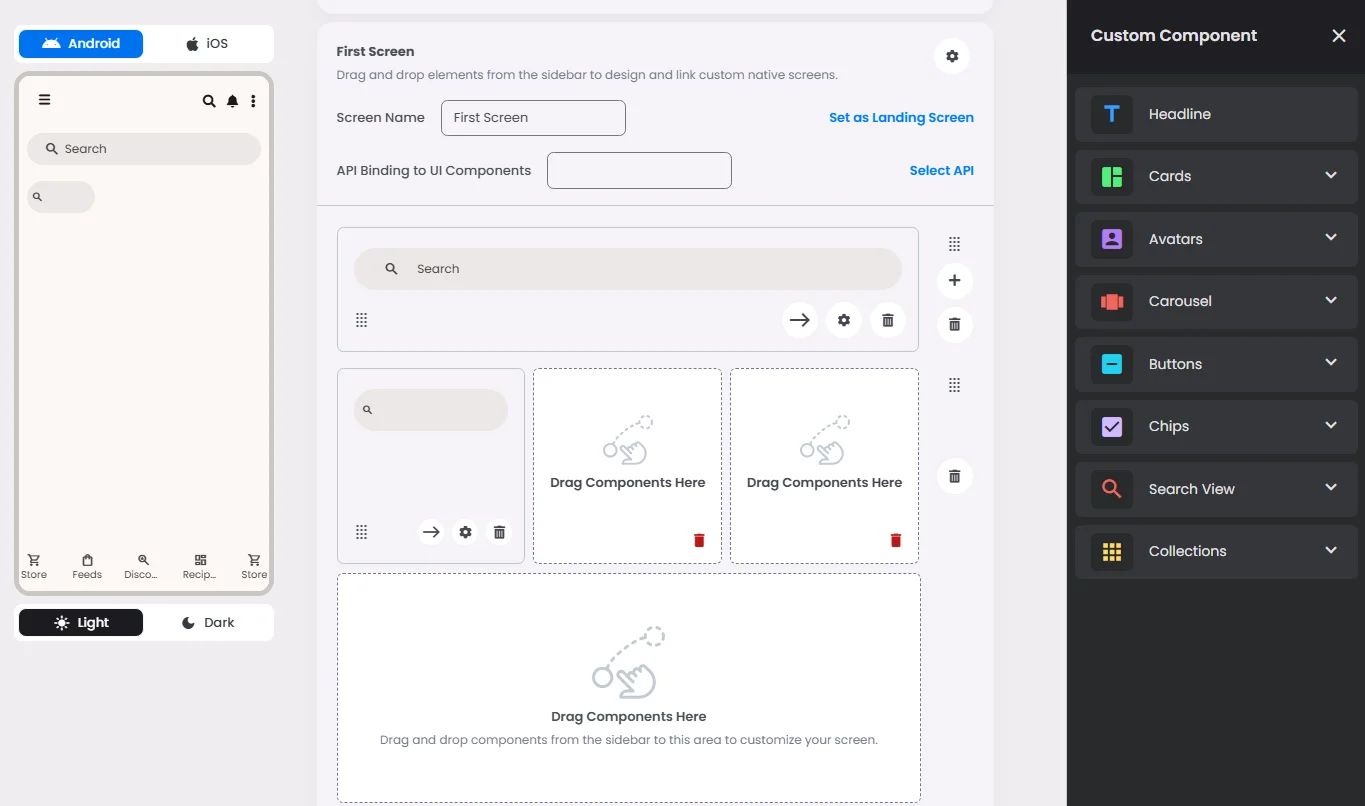

The Search element follows a flexible grid system where it can be placed alone or alongside one other element in the same row.
Min | Max |
20 grids | 60 grids |
⚙️ Settings
The following table outlines the available configuration options for this element. Each setting defines how the element behaves or appears within your app’s UI.
Field | Description |
Label | The main label for form fields like inputs or dropdowns. |
Custom Color | controls the color styling of text or divider. |
Divider | Shows a line under the cell to separate it from others, if supported. Default is off. |
Cell ID | This is the unique name for the cell. It's used to find or manage the cell later. If both cell_id and callback are provided, the system will use cell_id. |
Callback | This is the action name linked to the cell when a user interacts with it. You must add this when creating the cell. Once the cell is saved, this value can’t be changed. |
Cell Order | This controls where the cell appears inside the row (from left to right). Like callback, it must be set when creating the cell and can’t be changed later. |
Form | The type of the element. You must choose this when creating the cell, and it can't be changed later. |
Style | The visual style of the element (e.g., filled, outlined). You need to set this when creating the cell, and it can't be changed after saving. |
Version | A system-generated version number that updates automatically whenever the cell is changed. |
Body | Main text content displayed inside the cell. |
Prefix | Text that appears at the beginning of an input field (before the user's input). |
Trailing Icon | An icon shown at the end (right side) of the cell. |
Maximum | The highest value a user can enter in the field. |
Minimum | The lowest value a user can enter in the field. |
Value Type | The kind of data expected (like text or number). Must be set when creating the cell and stays fixed. |
Cell Query | Allows you to ask the user for special data like their location or contact number. |

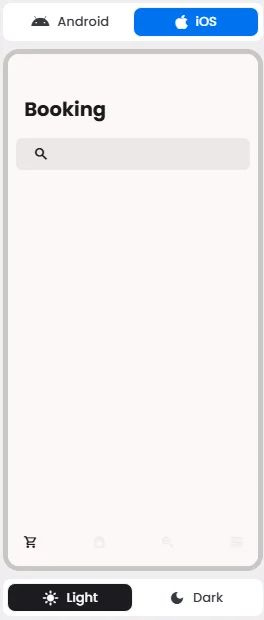

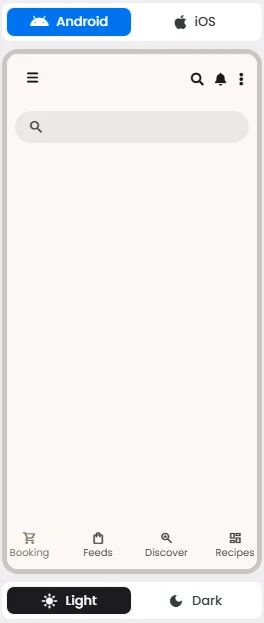

📱 Android & iOS Interface
The Search element adapts its appearance and layout behavior based on the platform to align with native UI guidelines:
👇🏻 Action (onClick)
Element | Purpose | Supports Actions | Available Actions |
Search | To allow users to search and discover content by entering keywords or phrases. | ✅ | Execute Function: List View |
🃏 Search Style Overview
Search is a navigation method that allows people to quickly find information across an app.

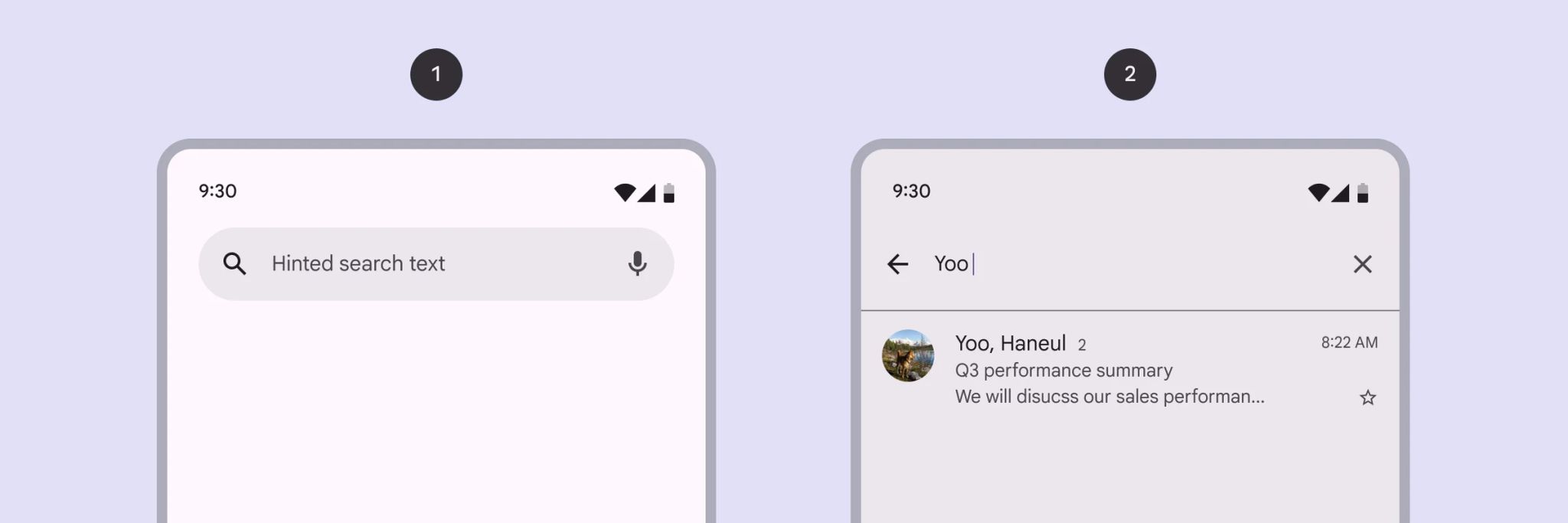

There are 2 types of them: Search bar & Search view.

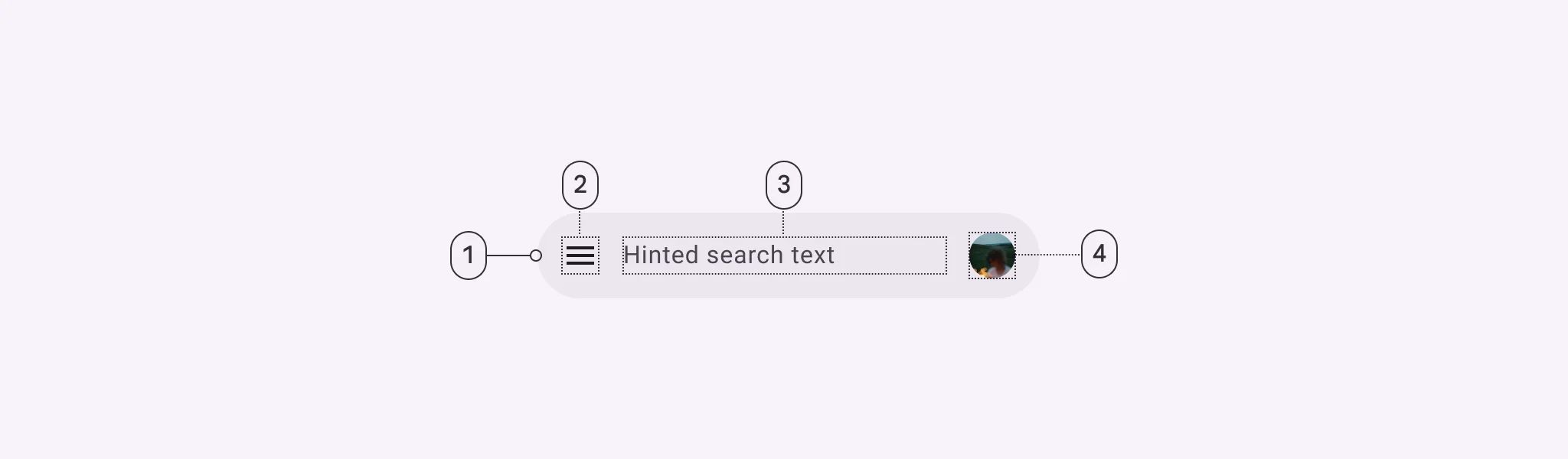

Search Bar
🧰 Usage

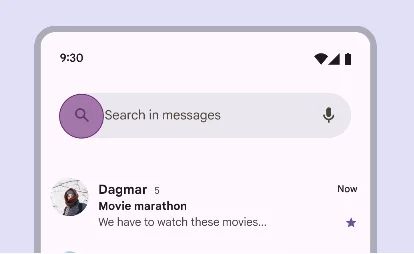

Use a search bar when search is the primary focus of the app, such as in a list.

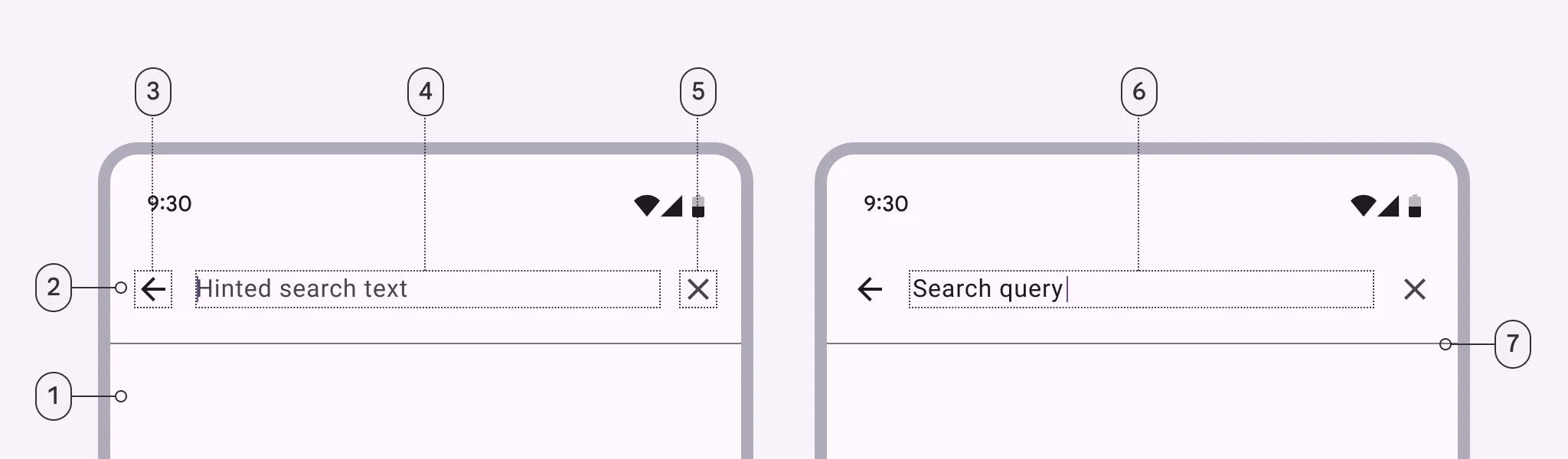

Search View
🧰 Usage

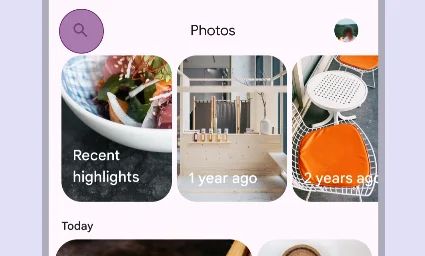

Use a search view when search is not the primary focus of the app, such as in a menu.
❓ FAQs
Q: How can I add a search bar so users can find events or bookings in my app without any coding?
A: With nandbox’s Search View element, you can easily add a search bar to your booking hub. This lets users quickly find events or appointments by typing keywords—no technical setup or backend work required.
Q: What can the Search View do in my app?
A: The Search View makes it easy for users to:
- Search by event or booking name
- Filter results in real time as they type
- Search by categories, dates, or tags to narrow things down fast
It creates a smooth and intuitive search experience—perfect for apps with lots of offerings.
Q: How do I set up and customize the search bar?
A:
- Open the nandbox builder and navigate to your Booking and Event Center layout.
- Drag the Search View element into the layout where you want the search bar to appear.
- In the settings panel:
- Choose which fields are searchable:
- Event/Booking Title
- Category
- Date or Keywords
- Set a custom placeholder (e.g., “Search for events…”).
- Save your changes and preview the layout.
Your search bar is now live, letting users find what they need in seconds—all without writing a single line of code.
